KRATOS DOCKING STATIONS

Generator Docking Stations

Kratos’ low voltage generator docking stations keep critical facilities online and enable seamless connection to backup power or load banks. Designed with safety and reliability in mind, our configurable systems are easy to deploy and designed around the specific requirements of your unique power system. Whether you are deploying a single unit or a fleet of generators, Kratos docking stations help mitigate downtime and improve recovery time during emergencies or planned outages.

Contact Us
A Smarter Connection to Generator Power

Generator docking stations are engineered interfaces that enable the structured connection of portable generators and/or load banks to the facility’s electrical infrastructure. Docking stations are designed to replace manual, improvised connections with predictable connection procedures and reliable operation in real-world environments. By reducing variability at the point of connection, these systems enable safter interaction and more reliable outcomes for data centers, medical response, storm relief, and other mission-critical applications.

Features & Specs Contact Sales

Custom Configured Docking Stations

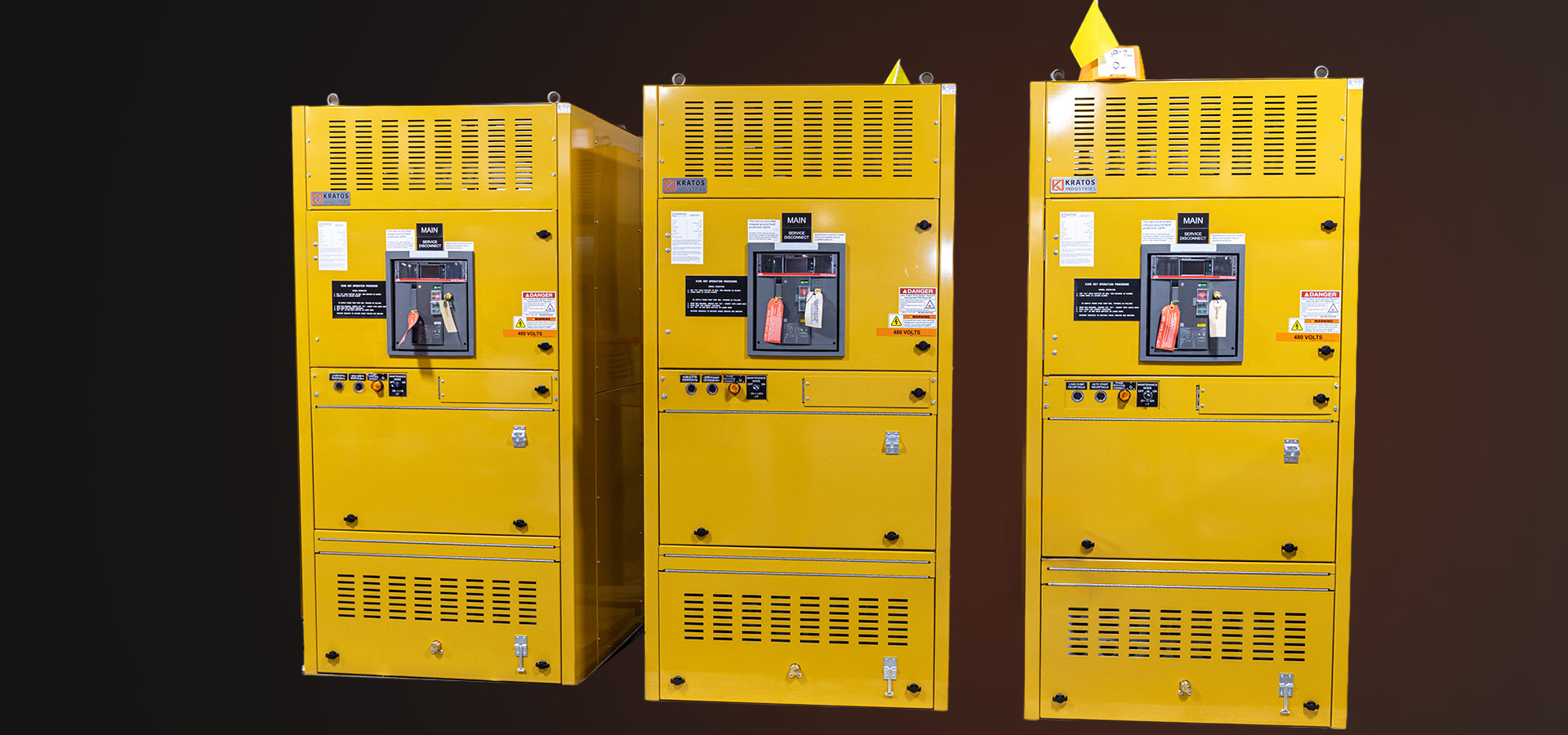

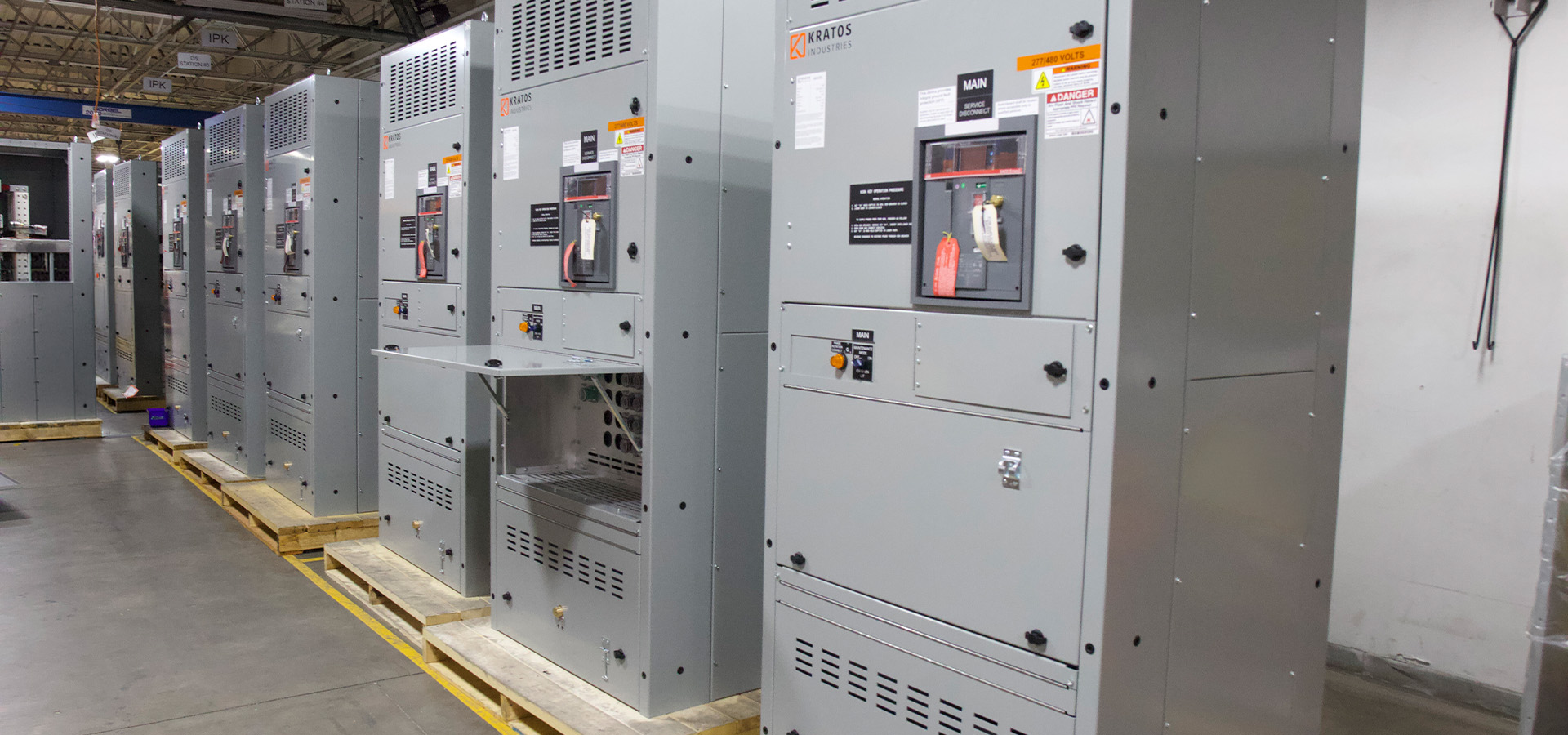

Kratos Docking Stations (KDS) provide reliable, quick connect power generation in a compact footprint. Our stations are designed with flexibility in mind, allowing for custom configurations without slowing deployment or introducing unnecessary complexities. With customizable footprints, colors, breaker types, and convenience receptacles, Kratos Docking Stations can be configured to meet the needs of both temporary and permanent power setups. Our first article inspection process ensures your docking stations will meet the requirements of your facility, equipment, and operations.

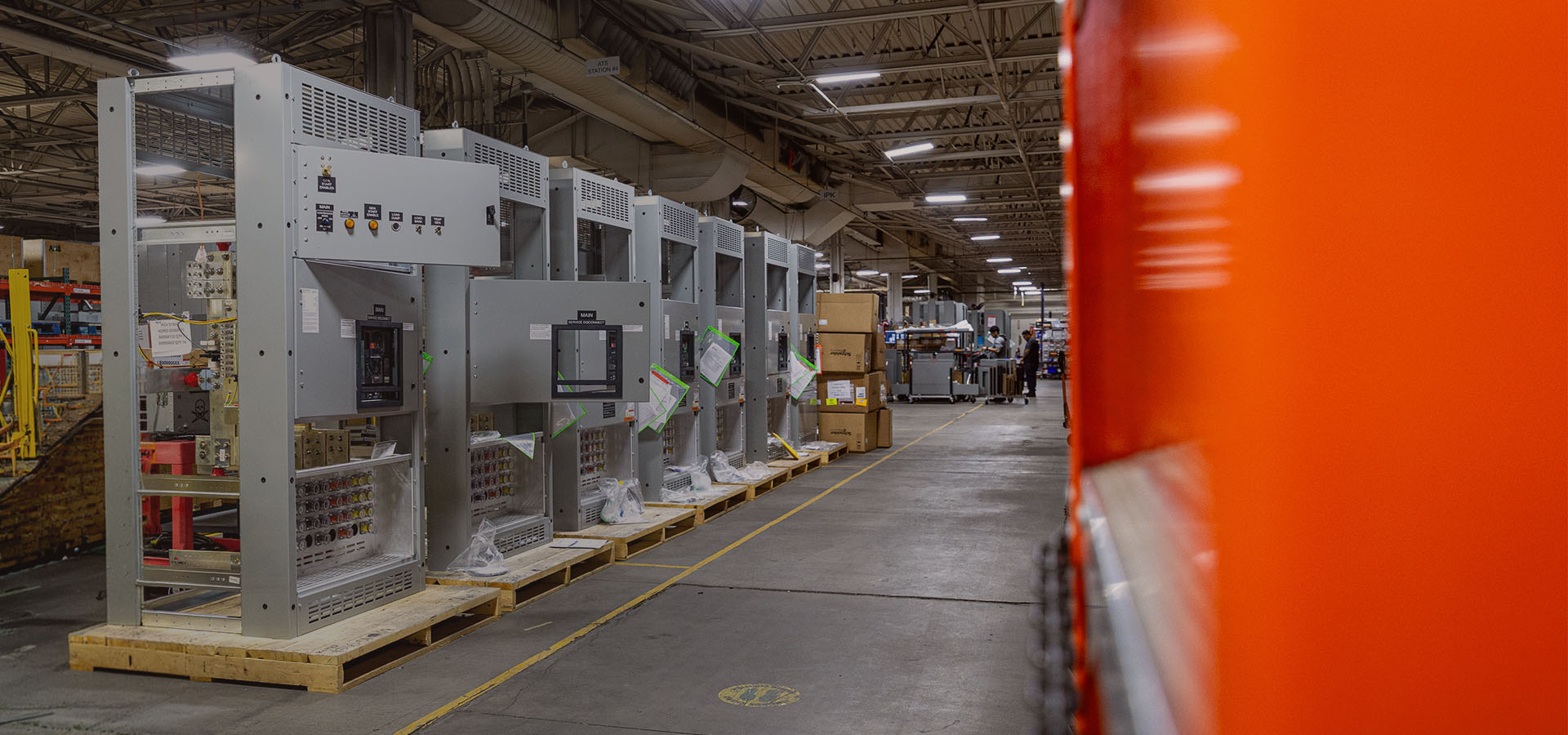

Schedule Factory Tour

FEATURES & SPECIFICATIONS

Kratos docking stations are built to meet the demands of high-performance electrical systems, while supporting the functional realities of operating in critical and industrial environments.

  • UL 891 Certified
  • Ranges from 1600A – 5000A
  • Voltage rating up to 600/347VAC
  • Short Circuit Current Rating (SCCR) up to 100kAIC
    • Cam-lock connection models 35kAIC
  • Enclosures: Type 1 indoor and Type 3R outdoor
  • Mechanical keyed interlock (dictated by design)
  • Silver-plated copper busbars
  • Ground fault protection (trip or alarm)
  • Standard footprint 90” x 42” x 36” indoor, 90” x 42” x 42” outdoor
  • Color-coded camlock receptacles
  • Standard mechanical lugs kit with option for NEMA 2 hole patterns
  • Integral heater with thermostat

CUSTOMIZATION OPTIONS

Each docking station can be configured to order with the following options:

  • Surge protection devices
  • Auto/Gen-start receptacle
  • Load dump receptacles
  • Battery charger receptacles
  • Shunt trips and/or electrically operated breakers
  • Integral breaker metering and communications
  • Fixed or draw out breakers (down with fire pump/integral)
  • Fire pump breaker
  • Custom colors, UV-printed graphics
  • Bus duct connections
  • Custom footprints and generator enclosure flush mount kits

DOCUMENT DOWNLOADS

MARKETS SERVED

CONTACT US TO GET STARTED

Power needs aren’t one-size-fits-all.
Your generator docking station shouldn’t be either.
Our team of experts are here to help create a solution tailored to your specific needs.

How Can We Help You?
